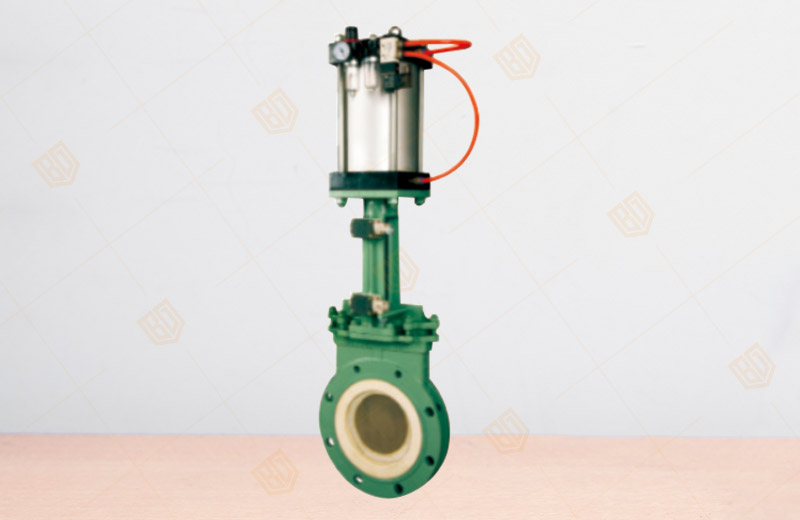

PZ673TC Pneumatic Thin Ceramic Slurry Valve product overview

PZ673TC Pneumatic Thin Ceramic Slurry Valve produced and sold by Baigang valve group sealing surface and the valve channel using high-performance structural ceramic materials, lifting ceramic shutter can be scraped off the sealing surface attached to the solid particles and stickies, automatic removal of sealing surface debris. Pneumatic ceramic slagging propeller valve sealing surface with corrosion-resistant, wear-resistant, high temperature is not deformed, etc., significantly improve the service life of the product. Pneumatic ceramic slagging propeller valve is mainly used in electric power, petroleum, chemical, metallurgy, mining, sewage treatment and other industrial areas, especially in the face of high wear and tear, strong corrosion, high temperature, high pressure and other harsh conditions, but also shows its superior performance. This product can meet the high wear and corrosion of the use of the environment, especially outstanding feature is the long life, cost performance is far superior to other similar metal valves.

PZ673TC Pneumatic Thin Ceramic Slurry Valve features

1, small size, light weight.

2 , completely open channel, to prevent the deposition of media in the valve.
3 , the flow resistance is small.
4 , easy installation and maintenance.
5 , wear resistance, corrosion resistance and sealing greatly extend the life of the valve

PZ673TC Pneumatic Thin Ceramic Slurry Valve scope of application
1 , mining, steel industry - for coal, filter pulp pulp and so on.

2 , purification device - for waste water, mud, dirt and clarified water with suspended solids.
3 , paper industry - for any concentration of pulp, water mixture.
4 , power plant ash - for the ash slurry.

PZ673TC Pneumatic Thin Ceramic Slurry Valve main components of the material

Main body: carbon steel (WCB), stainless steel (CF8, CF8M, CF3, CF3M) and so on

Shutter: stainless steel

Valve stem: stainless steel

Filler: rubber / PTFE / braided graphite
