Your current location: ProductsOther ValvesBrass Exhaust Valve

P15W-16 Brass Exhaust Valve

Product overview

Product model: P15W-16
Nominal diameter: DN15~25mm
Nominal pressure: 1.6MPa
Working medium: water and gas
Operating temperature: -10℃≤ T ≤100℃
Pipe thread standard: in line with ISO228 standard

P15W-16 Brass Exhaust Valve product details

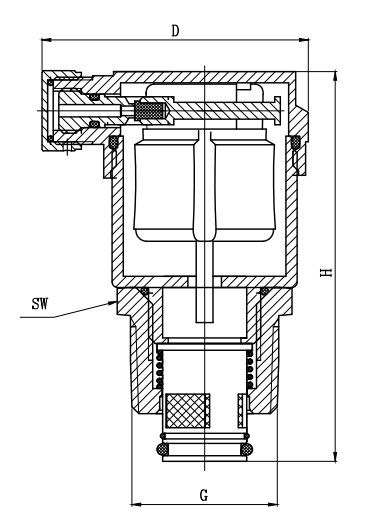

P15W-16 Brass Exhaust Valve specifications and dimensions

DN(mm)	NPS(in)	L	D	S
15	ZG1/2	76	31.5	22
20	ZG3/4	78	44	27
25	ZG1	79	44	33.5
20(A2)	ZG3/4	67.5	38	27

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the P15W-16 Brass Exhaust Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
