TYFZ Pressure Regulating Valve Group

Product overview

Product model: TYFZ
Applicable blast furnace: 100~2500M3
Applicable temperature: ≤350℃
Nominal diameter: 1375~2930
Applicable medium: air, gas and other gases

TYFZ Pressure Regulating Valve Group product details

TYFZ Pressure Regulating Valve Group main part material

Part Name Body Valve plate Valve stem Connection barrel Size flange Gasket
material Carbon steel Carbon steel alloy steel Carbon steel Carbon steel Asbestos rubber


TYFZ Pressure Regulating Valve Group technical performance

Valve set model Medium temperature ℃ Medium pressure MPa Media flow m3 / h Valve corner Remarks
TYFZ-10 ≤350 -0.05 -30000 0-90 ° -
TYFZ-30 " -0.07 48000-58000 0-90 ° -
TYFZ-38 " -0.07 68000-85000 0-90 ° -
TYFZ-65 " -0.1 111000-130000 0-90 ° -
TYFZ-75 " -0.15 137000-157000 0-90 ° -
TYFZ-90 " -0.2 170000 0-90 ° -
TYFZ-100 " -0.2 187000 0-90 ° -
TYFZ-125 " -0.25 205000 0-90 ° -
TYFZ-135 " -0.25 250500 0-90 ° -


TYFZ Pressure Regulating Valve Group performance parameters of electric device

 DN Electric actuator Power voltage, input signal current One-way (90 °) opening and closing time
model Output torque
250 DKJ-210 or DKJ-210Q 100N.m DDZ-II type 0-10mA DDZ III type 4-20mA 220V.AC 25
300 25
350 DKJ-310 or DKJ-310Q 250N.m
400 25
450
600 DKJ-410 or DKJ-410Q 600N.m 25
700
800 DKJ-510 or DKJ-510Q 1600N.m
900 25

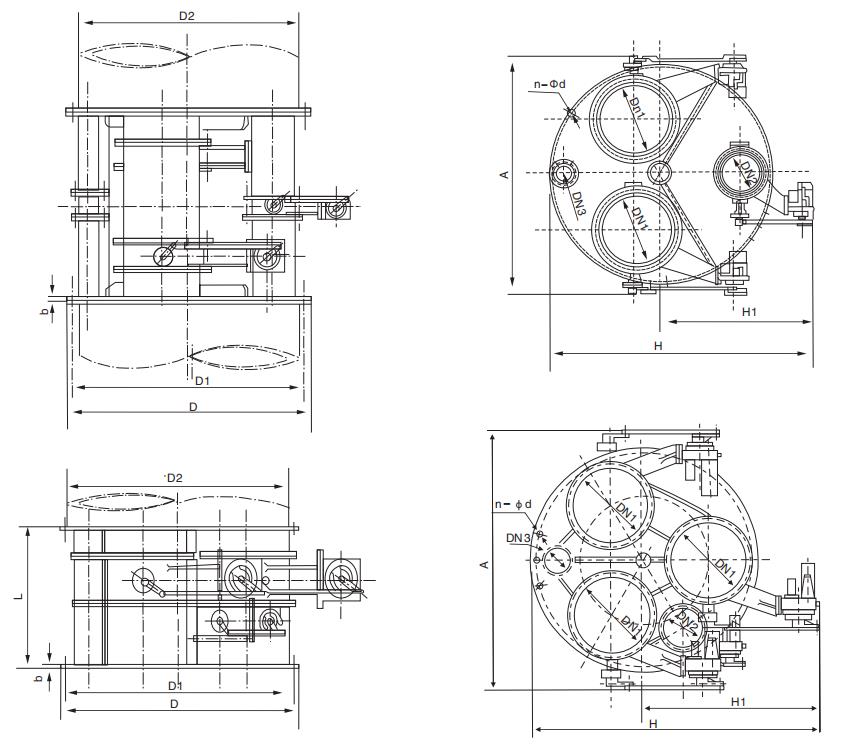

TYFZ Pressure Regulating Valve Group main shape and size of the connection table


model D D1 L b n-Φd A A1 Η H1 Valve preparation Allowable traffic (m3 / h) Weight (kg) Corresponding to the pipeline
TYFZ-25 1990 1930 1000 30 44-Φ30 3600 1800 2150 1150 600x2 +
300x1 + 150
55000-65000 2800 1200
TYFZ-30 1990 1930 1000 30 44-Φ30 3600 1800 2150 1150 700x2 +
300x1-150
65000-77000 3200 1300
TYFZ-40 1990 1930 1000 30 44-Φ30 3600 1800 2250 1250 700 χ 1 +
800 χ 1 +
350 χ + 150
77000-91000 3400 1400
TYFZ-50 2190 2130 1200 30 48-Φ30 3800 1900 2600 1500 800x2 +
400x1 + 200
91000-105000 3700 1500
TYFZ-60 2305 2240 1200 30 48-Φ30 4000 2000 2800 1600 800 χ 1 +
900 χ 1 +
400 χ 1 +200
105000-120000 4900 1600
TYFZ-65 2190 2130 1200 30 48-Φ30 4000 2000 2800 1600 700x3 +
350x1 + 200
111000-130000 5000 1700
TYFZ-75 2305 2240 1200 30 48-Φ33 4000 2000 2800 1600 900x2 +
500x1 + 200
120000-150000 5300 1800
TYFZ-90 2405 2340 1200 30 52-Φ 33 4000 2000 2550 1350 800x3 +
400x1 + 250
137000-170000 6700 1900
TYFZ-100 2605 2540 1200 30 56-Φ33 4200 2100 3000 1700 1000x2 +
500x1 + 200
150000-190000 7000 2000


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the TYFZ Pressure Regulating Valve Group performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
